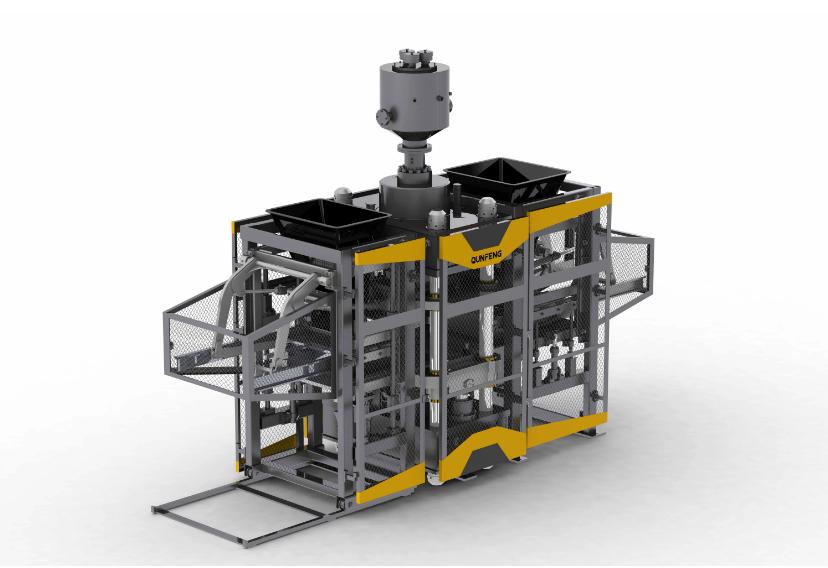

Hydraulic Blocks Press Machine technology is rewriting how medium-scale producers make bricks, pavers, and terrazzo tiles - quieter, cleaner, and more economical in 2026.
At QUNFENG, we see “silence” not as a luxury, but as a performance indicator. Noise rises when energy is wasted, feed is uneven, and parts are over-stressed. Quiet operation on a Hydraulic Blocks Press Machine signals hydraulic stability, controlled flow, and lower component stress. That translates to better density, longer mold life, and calmer workshops where communication is easy and shifts can extend without fatigue penalties.
Silence also drives compliance. Lower sound levels make it easier to meet local regulations and win permits, especially for facilities near residential zones. In short, micro-vibration and noise control are not only about comfort - they are about uptime, quality, and total cost.
The core of our quiet performance is a specialized vibrating table that delivers micro-vibration just where it is needed: at the material surface and mold interface, not across the entire machine frame. Small, fast impulses settle aggregates evenly and quickly, without the deep, structure-borne shock common in older designs.
• Micro-vibration creates a stable pre-compaction by pushing fines into gaps and reducing voids ahead of pressing.
• The static press applies even, full-face force, fixing density throughout.
• Because vibration energy is localized, noise and mechanical stress are both reduced.
• Faster, more uniform material distribution across the mold
• Higher, more repeatable density for solid bricks and pavers
• Lower noise levels than conventional vibration systems
• Less wear on molds, bearings, and frames, extending service life
A Hydraulic Blocks Press Machine is only as good as its force control. Our 600-ton (6000 kN) static hydraulic press creates high-density, high-strength products that are immediately stackable. This reduces curing space and shortens your logistics chain. Operating at a well-balanced 21 MPa, the hydraulic circuit is tuned to deliver the force you need without spiking energy consumption.
The system is optimized for a 50–150 mm product height range. That means you can switch from thin imitation stone tiles to standard bricks to robust pavers with confidence. Dry PC terrazzo tiles are also within scope, opening a premium product lane with strong margins and distinctive surface finishes.
Uniform density starts with uniform feeding. Our dual-motor distribution design independently controls the front and rear timings, pushing material to every corner with precision. No more heavy fronts and light corners. No more rework.
Automation multiplies this effect. A Siemens PLC coordinates machine, electrical, and hydraulic actions in real time. Remote monitoring and automatic fault diagnosis shorten response times and keep your line running. The man–machine interface is intuitive, guiding operators through setup, recipes, and troubleshooting with clear prompts. The result is stable production with a lower skill barrier.
• Molding cycle: 20–25 seconds, suitable for medium-scale, high-quality output
• Installed power: 69 kW, optimized for energy efficiency in continuous duty
Note: Actual cycle time and hourly capacity vary with raw material grading, moisture, and mix proportion.
Traditional lines spend heavily on pallets - buying them, storing them, repairing them. Our pallet-free approach removes that cost center, reduces handling steps, and lowers your initial investment. It is an easy upgrade path from older vibration machines because the downstream flow is simpler and the learning curve is shorter.
The molding area is sized for mainstream formats, allowing up to 24 paving bricks per cycle at 200×100×60 mm with a standard recipe and trained crew. You can produce:
• Solid bricks for structural use
• High-strength paving stones for roads and plazas
• Slope protection bricks for civil projects
• Dry PC terrazzo tiles for architectural surfaces
With fewer consumables and fewer touchpoints, your per-piece cost drops while consistency rises.
Silence is not the end goal; strength and appearance are. The combination of micro-vibration plus static pressing builds internal strength and clean edges. Edges chip less. Surfaces are more uniform. Color blends in face mixes look even, especially valuable for terrazzo and decorative pavers. Because products are immediately stackable, you free floor space and reduce forklift movements, which lowers risk and saves time.
For plant managers, the benefits connect directly to KPIs:
• Lower scrap rate due to balanced feeding and stable compaction
• Higher uptime from automatic diagnostics and simpler mechanics
• Predictable energy profile anchored by 69 kW installed power
• Shorter training time thanks to a guided HMI and recipe controls
If you plan to scale in 2026, a quieter, cleaner Hydraulic Blocks Press Machine is a practical lever. It helps you meet urban compliance, cut pallet and maintenance costs, and unlock premium SKUs like dry PC terrazzo tiles. QUNFENG brings the package together: 6000 kN static force, micro-vibration that truly reduces noise, dual-motor distribution, Siemens PLC automation, and a user-friendly HMI.
Ready to see it in action? Contact QUNFENG for a live run, a cost-per-block estimate, and sample bricks pressed on your own mix. Our engineers will map your raw materials to cycle times and output ranges, so you launch with confidence. Let's make your next Hydraulic Blocks Press Machine investment quieter to run, simpler to manage, and stronger on the bottom line.
