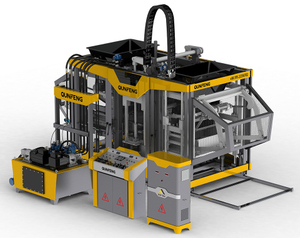

What Is "Supersonic" series of advanced servo block machine?

"Supersonic" Series Servo Block Machine is currently the preferred model invested by customers. Its vibration system adopts high-efficiency servo system, high speed, high-frequency vibration, energy saving and noise reduction, low inertia ejection and vibration, realizing super-speed acceleration molding; with auxiliary automatic mold changing system, it can realize semi-automatic and rapid mold change . According to the customer's investment needs, the fully automatic line and the simple line are suitable for the investment and production of medium and large enterprises.

Main features of the product
 High-efficiency servo system: using high-efficiency two-axis servo, high speed, high frequency vibration can be realized, good synchronization, energy saving and noise reduction;
  High-efficiency hydraulic control system: It is driven by a high-horsepower double-pump motor, which has high efficiency, can achieve flexible movements and quick response to actions;
  Airbag clamping: reduce sound and noise, increase the speed of mold change, and reduce mold damage;
  Damping pad: rubber pad made of imported Michelin raw rubber, high-efficiency damping and noise reduction, durable;
  Double pressure head cylinder design: effectively improve the strength and quality of products;
  Rotary feeder: 360°rotating rake, equipped with scraping device, wide applicability, especially good for making high-quality tiles;
  Anti-mixing pigment feeding system: while anti-mixing, it effectively improves the surface quality of the tiles;
  Auxiliary automatic mold changing system: realize quick mold change and effectively improve production efficiency;
  Intelligent control: The core hardware of the control system adopts Siemens PLC, and the remaining sensor components adopt well-known brands such as German Turck; the operation is simple and easy to understand; it has a full range of fault alarm system and automatic diagnosis functions, which greatly shortens the troubleshooting time.

8 ADVANTAGES Expert in concrete block making machine industry
 Intellectualized control, 15% saving in labor cost .
Electro-Hydraulic integrated technology , 20% raising in output;
​​​​​​​ Suspension Type Vibration, 10% reduce in noise pollution;
​​​​​​​ Fault Alarm System, 30% time saving in troubleshooting;
​​​​​​​ Intellectualized Starting,20% improvement in working efficiency
​​​​​​​ Material-Ratio program saved in PLC controller, no human disturbance.
​​​​​​​ Intelligent remote control ,quickly solve the problem in all the places at any time.
​​​​​​​ Customized design, efficient production that reduces costs.


Legend

Product size (mm)

Output

QS2000

QS1800

QS1300-H

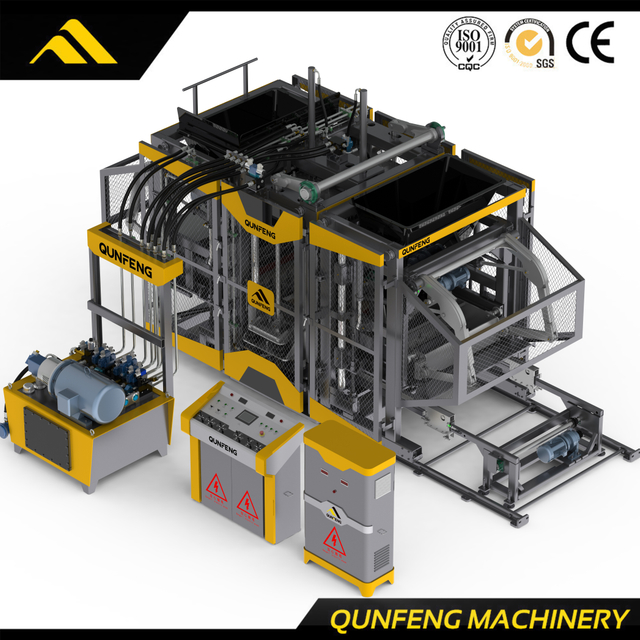

QS1300

QS1000-H

QS1000

QM1200

200*100*60

Pcs./Hour

10800

9818

7623

8640

6352

7200

8640

225*112.5*60

Pcs./Hour

8181

7363

5929

6720

5717

6480

6000

400*150*200

Pcs./Hour

5082

4447

2880

3085

1986

2133

3323

400*200*200

Pcs./Hour

3811

3176

2400

2571

1737

1866

2492

Note: The moulding cycle time and the hourly capacity will be changed according to the proportion and the quality of the raw matirlal.
