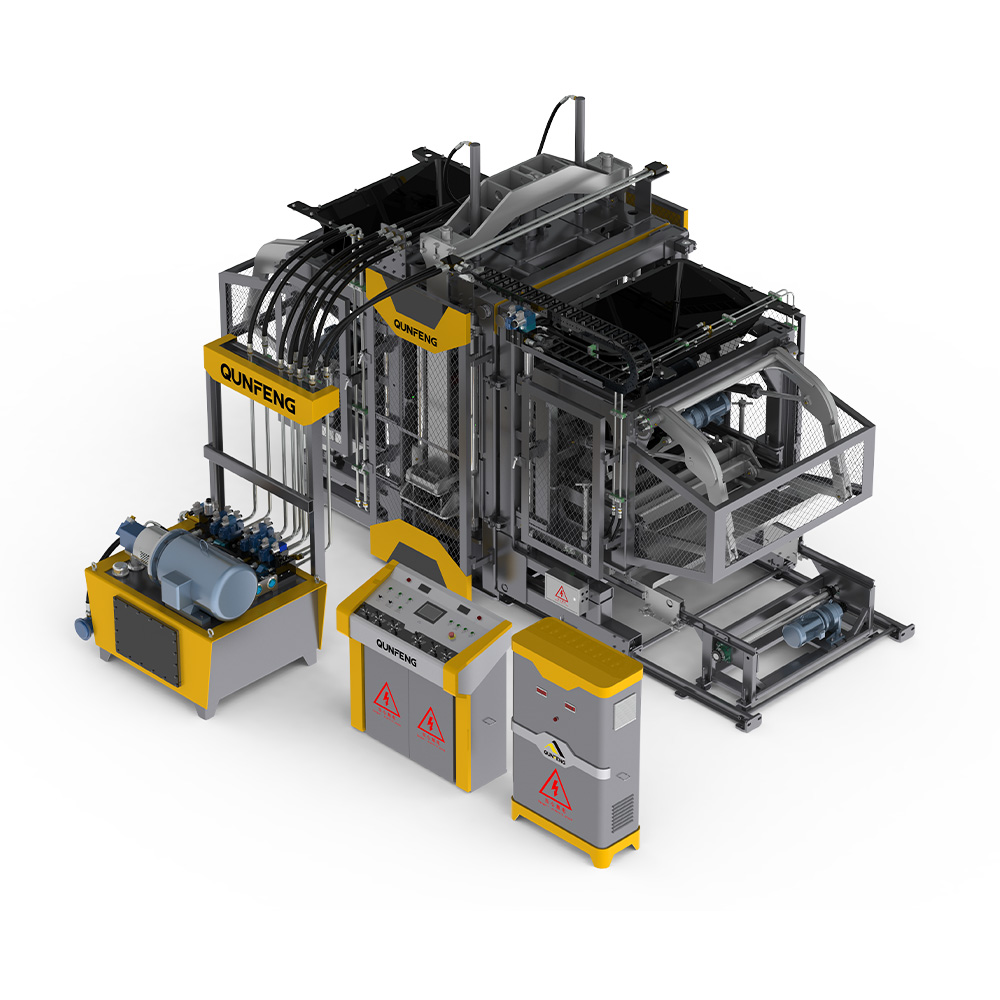

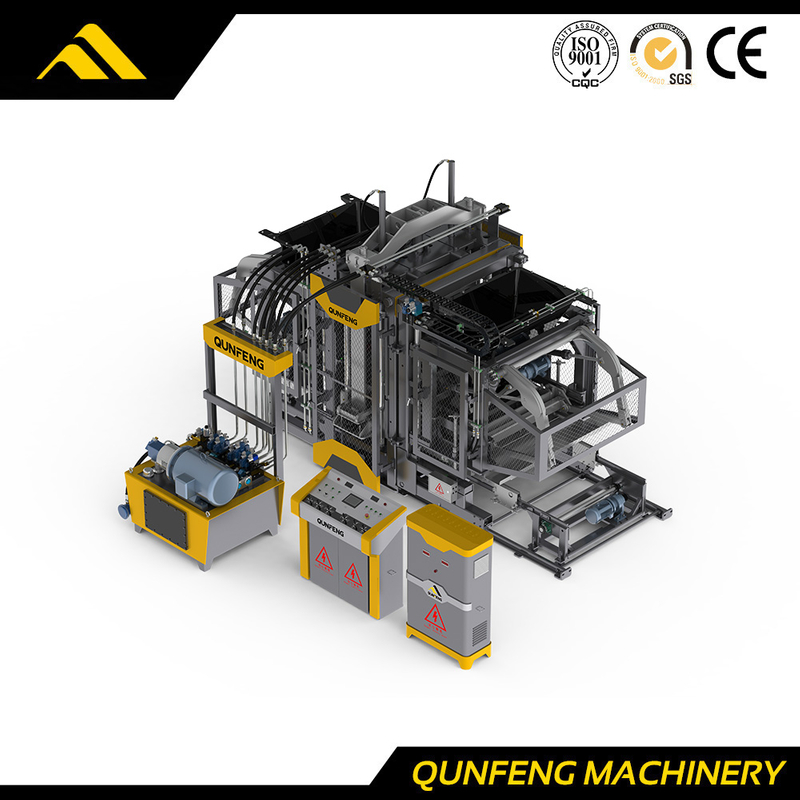

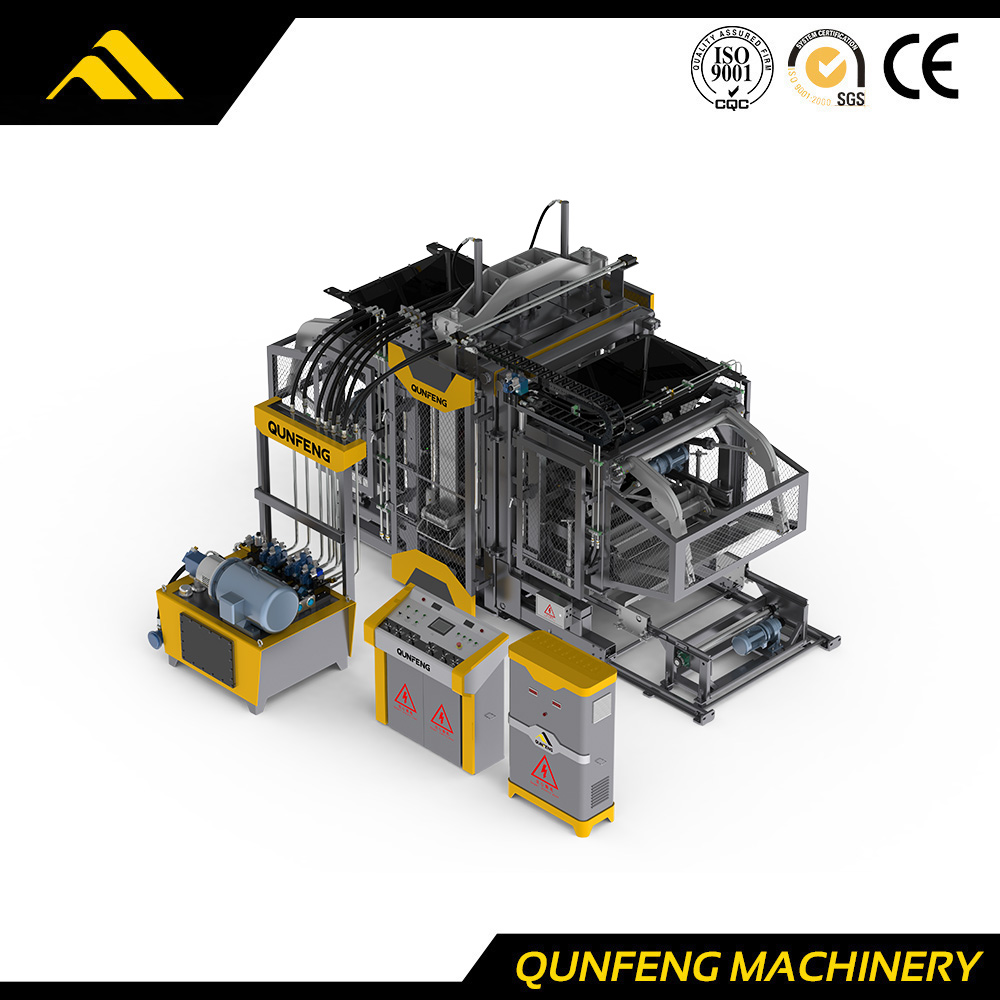

Block Making Machine QM1200

Name: Block Making Machine QM1200
Brand: Qunfeng
Rating: 5.0 (13 reviews)

The Block Making Machine QM1200 is a highly efficient and durable solution designed for large-scale block production. Equipped with advanced automation and precise control systems, it ensures consistent quality and high output. Built to withstand demanding workloads, the QM1200 produces strong, durable blocks ideal for various construction projects. Its user-friendly design streamlines operation and maintenance, minimizing downtime and reducing operational costs. Featuring Qunfeng’s innovative U-shaped vibration system, a unique application in China, the QM1200 outperforms traditional table vibration machines in noise reduction, molding speed, production efficiency, and product compactness, making it the perfect choice for reliable, cost-effective block production.


Availability:

Model:
QM1200
Brand:
Qunfeng

Product Description

Main Featured of the Advanced Block Machine

Suitable height for block: 50-220mm；

U-shaped vibration system: low noise and high efficiency, fast product forming

Anti-mixture color feeding system: Improve the surface quality of pavers

Airbag clamping: reduce noise and increase the service life of the mould

Imported shock pad: shock absorption and noise reduction

9 major components for the servo block machine

Efficient Servo System

Stabile Hydraulic System

Dumping Airbag

The design for the press head with two oil cylinders

Air-operated Clean Device

Ping-pong type for feeding material

Arc-shape Feeding Arm

Modularize Eccentric Vibration

Automatic Control System

QM1200	TECHNICAL DATA
Dimension(Main Machine)	3510X2700X3250mm
Rating pressure	21MPa
Vibration frequency	0-75HZ
Vibration	U-shaped vibration
Pallet size	1360x700mm
suitable height for block	35-300mm
Cycle time	10-22sec
Power	69kW
