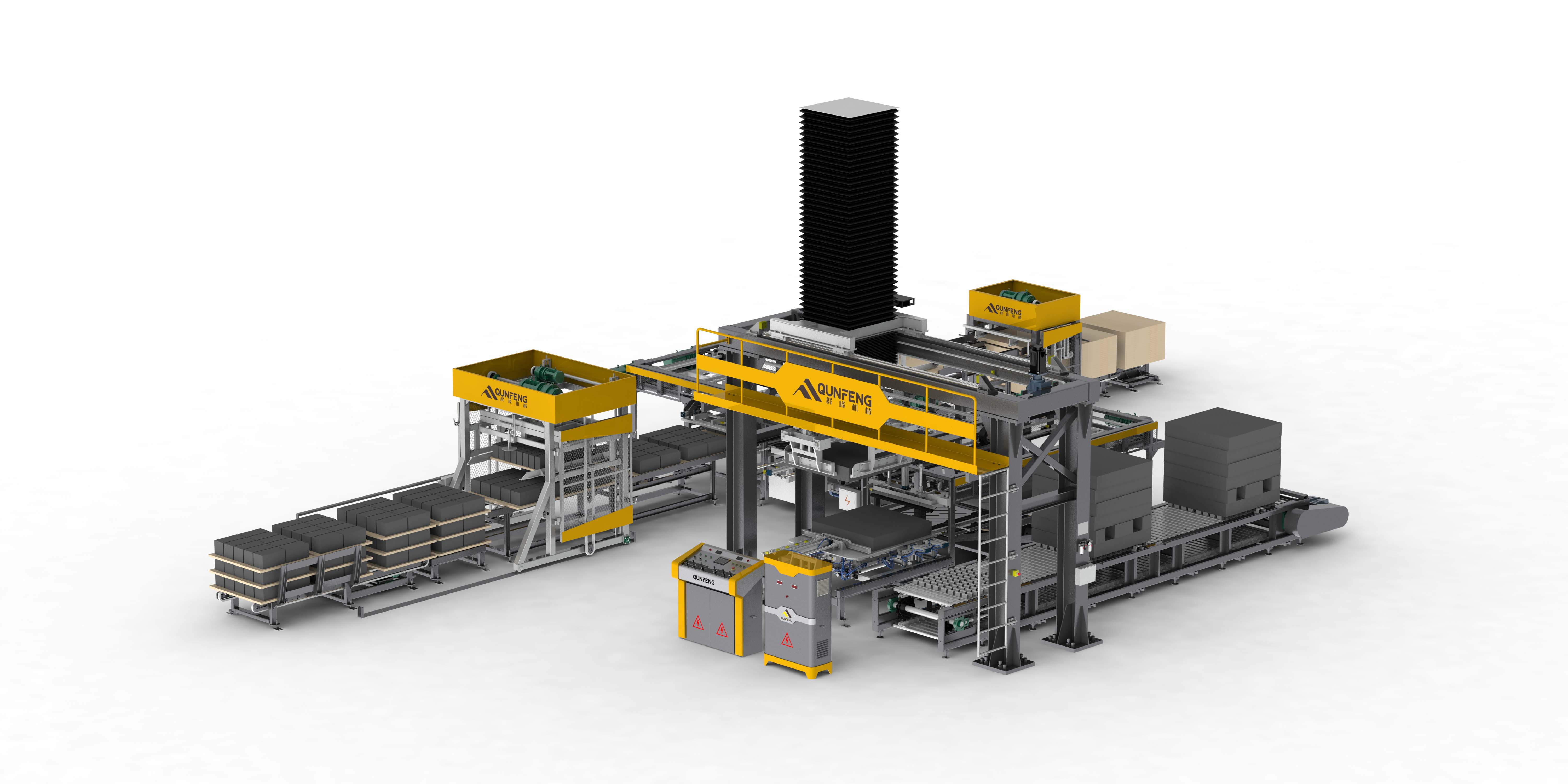

The QMD1200G is an advanced automation solution designed to revolutionize end-of-line logistics. By stacking products at an elevated position, it optimizes factory floor space while significantly reducing reliance on manual labor, ensuring consistent, high-speed output for large-scale production lines.
Smart Automation Control:Powered by a robust PLC + Touch Screen system with Ethernet connectivity. It enables real-time data exchange, unmanned operation, and automatic fault diagnosis, making troubleshooting effortless without specialized technicians.
Optimized Space Utilization:The unique high-position configuration allows for better accessibility and flow within the production area. It efficiently organizes cured blocks into square stacks, maximizing storage density in your yard.
Versatile Stacking Capabilities:Highly flexible operation that supports cross-stacking and automatic generation of forklift holes. It can be connected directly to the production line for seamless online cubing or operate independently.
The ultimate solution for maximizing throughput and minimizing labor costs in modern block factories.
| Quantity: | |
|---|---|
QMD1200G
Qunfeng
Product Description
Tech: Independent Cuber System
Specially developed to solve the "heavy labor intensity" and "low efficiency" of manual cubing. It automates the stacking process for cured blocks, significantly reducing labor costs.
Tech: Online or Offline Operation
Highly adaptable. It can be placed separately near the curing field or connected directly to the production line for seamless online cubing, fitting various factory layouts.
Tech: Cross Stacking + Forklift Holes
Capable of separating and regrouping blocks to form square stacks. It supports cross-stacking for stability and automatically generates forklift holes, optimizing logistics.
Tech: PLC + Touch Screen + Ethernet
Powered by a PLC control system with real-time Ethernet data exchange. High-end intelligent sensors enable fully unmanned automatic operation.
Tech: Auto-Alarm & Diagnosis
In case of failure, the machine stops automatically, alarms, and displays the exact fault location. Issues can be easily removed without professional technicians.
Tech: Tank Chain Conveyor Output
Finished stacks are efficiently output via a tank chain conveyor. The system is ready for immediate manual packing or integration with an automatic baling machine.
Comparison of core parameters and competitive advantages based on official Qunfeng data.
| Technical Data | QMD1200G Specification | Competitive Advantage (vs Industry Standard) |
|---|---|---|
| Pallet Size | (850-1250) × (680-950) mm | Wide Compatibility:Supports a highly flexible pallet size range, allowing easy integration with various existing production lines and pallet inventories without costly replacements. |
| Palletizing Size | 1200 × 1200 mm | Maximum Logistics Efficiency:Creates large, stable 1.2m square stacks, optimizing truck loading efficiency and maximizing storage density in the curing yard. |
| Cuber Cycle | 13 - 18 s / layer | High-Speed Operation:Achieves a rapid cycle time of 13-18 seconds per layer, ensuring the cuber never becomes a bottleneck, even for high-capacity block machines. |
| Max Weight (per pallet) | ≤ 400 kg | Heavy-Duty Handling:Designed to handle heavy loads up to 400kg per pallet cycle, making it suitable for high-density solid blocks and large curbstones. |
| Total Power | 58.4 kW | Robust Drive System:Equipped with a powerful 58.4 kW system to drive the heavy-duty lifting, rotating, and conveying mechanisms reliably under continuous operation. |
| Unloading Height | ≤ 800 mm | Optimized Output:Delivers finished stacks at a convenient height (≤800mm) for easy pickup by standard forklifts or connection to automated wrapping systems. |
| Occupation of Land | 19500 × 9800 × 6500 mm | Comprehensive System:The dimensions reflect a complete turnkey solution including buffer conveyors, marshalling systems, and the main cuber tower, requiring a dedicated layout planning. |
