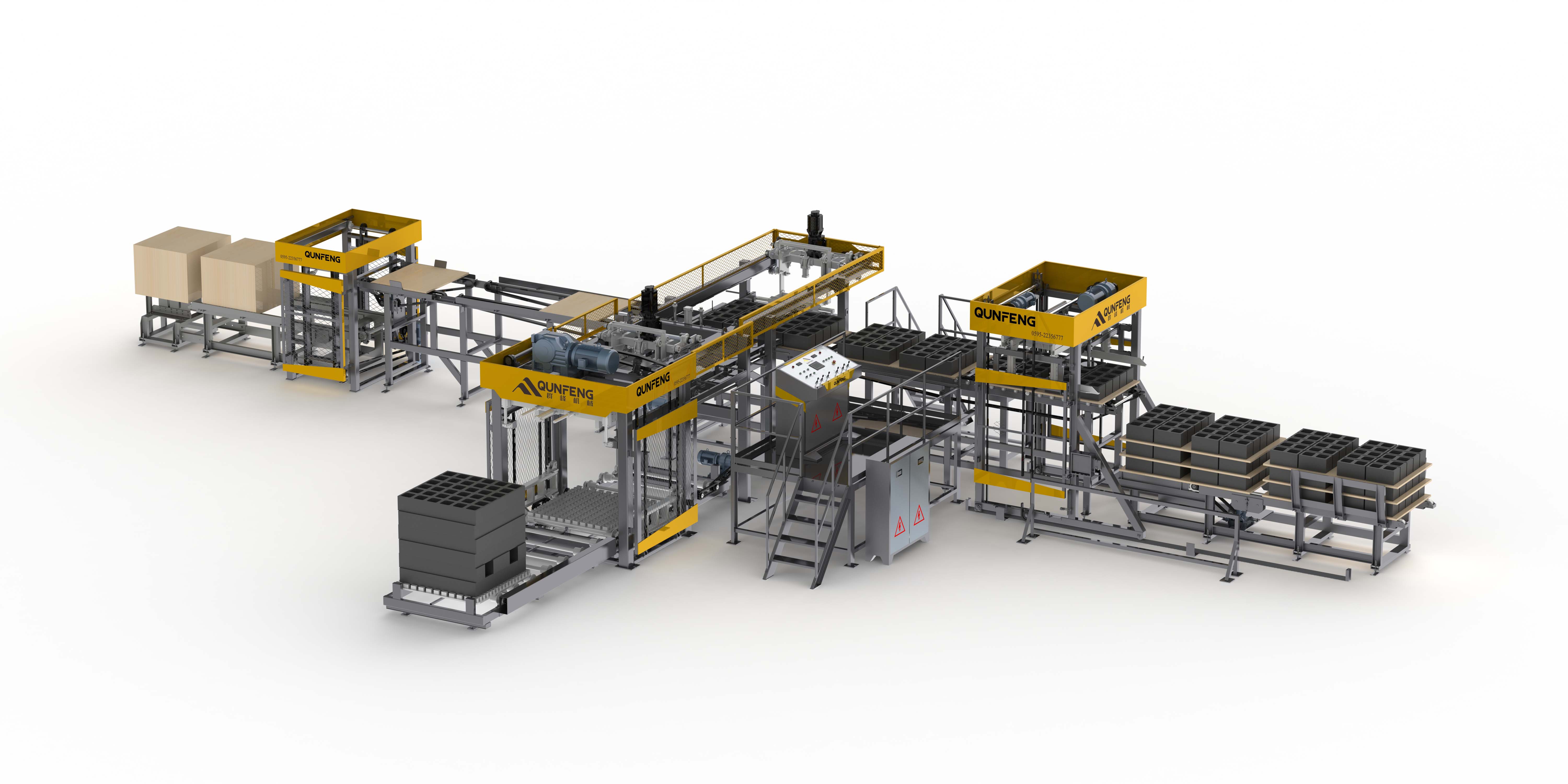

The QMD1200D is a cost-effective Low Position Cuber designed for facilities with height restrictions or those seeking easy maintenance access. It automates the separation and stacking of cured blocks, delivering efficient palletizing performance with a user-friendly ground-level configuration.
Easy Access & Maintenance:The low-position design ensures all major components are easily accessible from ground level. This simplifies routine maintenance and troubleshooting, reducing downtime compared to high-tower systems.
Intelligent Automatic Control:Features a PLC + Ethernet control system for real-time data exchange and automatic fault diagnosis. Even without professional technicians, operators can easily identify and resolve issues via the smart alarm system.
Flexible & Precise Stacking:Capable of handling various pallet sizes and product types. It supports cross-stacking for stability and automatically reserves forklift holes, ensuring secure and efficient logistics transport.
The ideal reliable and accessible automation solution for optimizing your block packaging line.
| Quantity: | |
|---|---|
QMD1200D
Qunfeng
Product Description
Tech: Cross-Typed Stacking
Capable of separating and rearranging different block types. It supports cross-typed stacking to form stable cubes, ensuring the structural integrity of the stack during transport.
Tech: Automatic Forklift Holes
Designed for efficiency. The system can automatically reserve holes for forklift transport within the stack, eliminating the need for manual intervention and speeding up logistics.
Tech: With or Without Tray
Offers wide applicability to pallets of various specifications. It is highly flexible, allowing blocks to be stacked with or without trays to suit different production requirements.
Tech: Ethernet + Intelligent Sensors
Realizes fully automatic operation through real-time Ethernet data exchange and high-end intelligent sensors, ensuring precise coordination of all mechanical movements.
Tech: Auto-Diagnosis & Alarm
Features automatic fault alarm and stop functions. It prompts the specific cause of the fault, so troubleshooting can be easily realized without professional personnel.
Tech: Manual or Auto Wrapping
After stacking, the cube is sent out by conveyor. The system is designed to integrate seamlessly with downstream processes, allowing for manual packing or automatic wrapping.
Comparison of core parameters and competitive advantages based on official Qunfeng data.
| Technical Data | QMD1200D Specification | Competitive Advantage (vs Industry Standard) |
|---|---|---|
| Pallet Size | (850-1250) × (680-950) mm | Universal Compatibility:Accommodates a flexible range of pallet sizes, allowing seamless retrofitting into existing block plants without the need to replace current pallet inventory. |
| Palletizing Size | 1200 × 1200 mm | Logistics Optimization:Builds large, stable 1.2m square stacks, which optimizes truck loading volume and maximizes storage density in the yard. |
| Cuber Cycle | 13 - 16 s / layer | Rapid Throughput:Achieves a faster cycle time (13-16s) than many high-position alternatives, ensuring the cuber keeps pace with high-speed block machines. |
| Total Power | 43.15 kW | Energy Efficiency:Consumes significantly less power (43.15 kW) compared to the high-position version (58.4 kW), reducing long-term operational electricity costs. |
| Unloading Height | ≤ 1000 mm | Ground-Level Access:The lower unloading height (≤1000mm) simplifies forklift operations and manual inspections, making it safer and easier for operators to manage. |
| Occupation of Land | 17000 × 7800 × 3670 mm | Space Saving:Occupies a smaller footprint and significantly lower height (3.6m vs 6.5m for High Position), making it ideal for factories with ceiling height restrictions. |
| Collecting Pallet Height | ≤ 1000 mm | User-Friendly Maintenance:The entire system operates at a lower elevation, allowing maintenance personnel to service the machine from the ground without needing ladders or platforms. |
