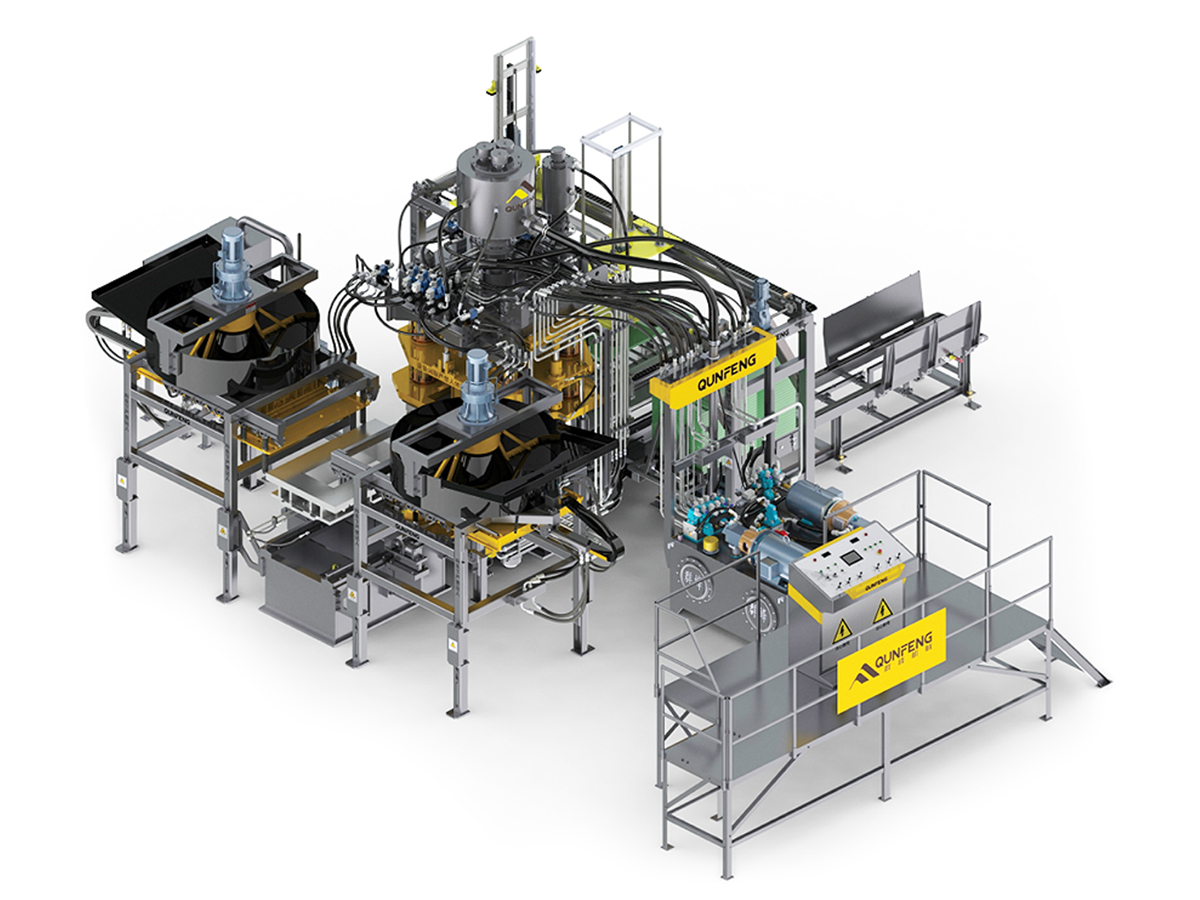

Designed for the high-end market, the QPV600 combines wet static pressure technology with intelligent control to produce PC slabs that rival natural stone in both beauty and durability.
Powerful Forming System
Tech: 600T Pressure + Two-Way Filtration
Ensures high-density products with outstanding freeze-thaw resistance, perfect for outdoor landscaping.
Easily switch between large PC pavers, curb stones, and thick/thin boards to meet diverse architectural needs.
Premium Finish Quality
Tech: Wet Static Pressure Process
Creates a surface texture ideal for secondary processing (sandblasting/washing), achieving a premium "stone-like" look.
| Quantity: | |
|---|---|
QPV600
Qunfeng
Product Description
Tech: 600T Static Pressure + Wet Process
Utilizes a superior wet static pressure process with 600-ton hydraulic force. This dual-directional filtration ensures maximum density and precise material distribution.
Tech: Natural Texture + High Durability
Produces PC slabs that perfectly simulate natural stone. The high-density structure provides outstanding freeze-thaw resistance, ideal for high-end landscape projects.
Tech: Sandblasting & Water Washing Ready
The high structural integrity supports various secondary processing techniques. Slabs can be sandblasted or water-washed to meet diverse architectural requirements.
Tech: Curbstone + Single/Double Layer Systems
Supports multiple configurations including curbstone machines and large-board systems. We provide specialized dry/wet models tailored to specific production needs.
Tech: PLC Control + Smart Monitoring
Features a high-precision automated control system that ensures repeatable quality across every batch. Real-time monitoring significantly reduces human error and material waste.
Tech: Heavy-Duty Frame + Durable Components
Engineered for continuous 24/7 operation. The heavy-duty frame design minimizes vibration during the high-pressure molding phase, ensuring the structural consistency of finished PC slabs.
Comparison of core parameters and competitive advantages against industry standards.
| Technical Data | QPV600 Specification | Competitive Advantage (vs Industry Standard) |
|---|---|---|
| Rated Pressure | 6000 KN (600T) | Wet Static Pressure: Delivers high-density molding that ensures the internal structure of PC slabs is compact and free of air pockets, outperforming dry-vibration methods in durability. |
| Molding Cycle | 30-15 s | High-Speed Automation: Optimized hydraulic cycles enable rapid production, ideal for high-volume urban infrastructure projects. |
| Suitable Product Height | 20-250 mm | Versatility: Flexible range allows for the production of both standard pavers (40mm) and heavy-duty industrial PC slabs (150mm). |
| Product Size | PC large pavers: | 1250 × 630 × 20-100 mm |
| PC curb stone: | 1000 × 400 × 100-250 mm | |
| Rated Power | 68 kW | Energy Efficient: Lower total power consumption compared to vibration-based machines of similar capacity, significantly reducing cost per slab. |
| Dimension | 6200 × 2400 × 4600 mm | |
Product Application
PC bricks |
PC bricks |
Board |
Curb stone |
Curb stone |
Curb stone |
