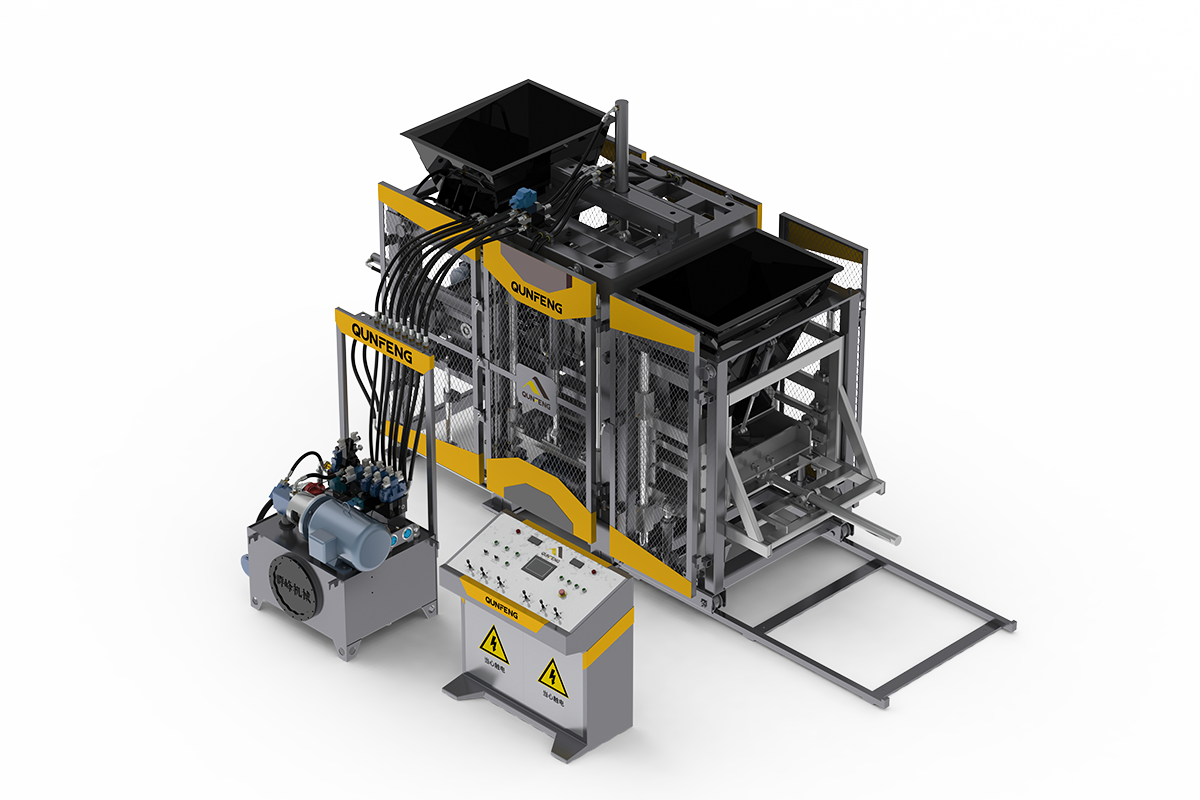

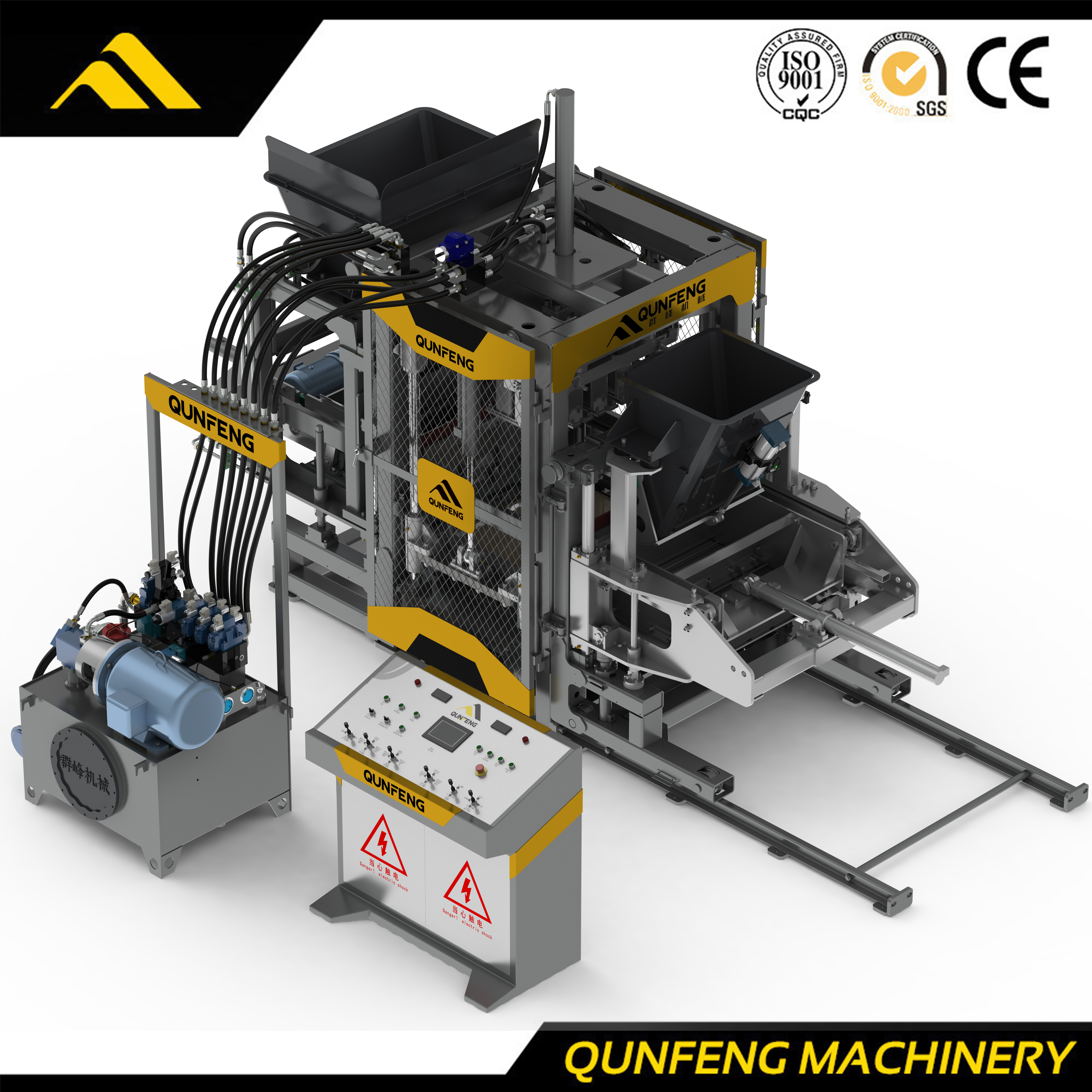

The QS700 is a highly efficient Automatic Block Machine engineered for medium-scale production. By utilizing a compact hydraulic forming system and intelligent PLC control, it delivers stable performance and high-density output, offering an excellent balance between investment and productivity.
High-Density Molding:The integrated vertical vibration system ensures uniform compactness and superior strength for both pavers and hollow blocks.
Operational Efficiency:Designed for low energy consumption and ease of maintenance, maximizing daily output while minimizing long-term operating costs.
Versatile Application:Optimized for using construction waste, slag, and fly ash. It easily accommodates diverse market needs including curb stones, interlock blocks, and landscaping pavers by simply changing molds.
Ideal for growing block-making businesses seeking durability, flexibility, and rapid return on investment.
| Quantity: | |
|---|---|
QS700
Qunfeng
Product Description
Tech: Suitable Block Height 50-200mm
Engineered for broad adaptability. The machine supports a molding height range of 50mm to 200mm, making it perfect for producing everything from standard pavers to load-bearing hollow blocks.
Tech: Low Operating Cost + High Product Quality
Delivers premium high-density blocks while keeping operational expenses low. This balance ensures a rapid return on investment, making high-quality production accessible with minimal daily running costs.
Tech: Small Footprint + Flexible Operation
A compact model that sacrifices nothing in functionality. It features complete functions within a small footprint, offering flexible operation and easy installation in factories with limited space.
Tech: PLC System + Data Memory
Adopts the advanced Siemens PLC control system to ensure high stability and reliability. Its data memory function allows for easy parameter adjustments, significantly reducing the learning curve for operators.
Tech: Proportional Valve Technology
Equipped with high-dynamic proportional valves that automatically regulate oil flow and pressure. This protects the hydraulic cylinders while ensuring rapid molding speed and consistent product dimensions.
Tech: Compulsory Arch-Breaking Feeding
Uses a compulsory feeding system with a 360° rotating rake. This mechanism rapidly breaks down material arches, ensuring fast, uniform filling of the mold for superior block density.
Major Components for The Servo Block Machine | |
Vibration system |  Material feeding system |
Electrical cabinet |
Hydraulic system |
Comparison of core parameters and competitive advantages against industry standards.
| Technical Data | QS700 Specification | Competitive Advantage (vs Industry Standard) |
|---|---|---|
| Rating Pressure | 21 MPa | High-Pressure Molding:Ensures superior density and load-bearing strength, meeting strict municipal standards for heavy-duty pavers. |
| Vibration Frequency | 0-75 Hz | Variable Frequency Control:Wider frequency range than standard 50HZ motors, allowing for optimized compaction based on material type and reducing cycle time. |
| Suitable Block Height | 50-250 mm | Versatility:Perfectly optimized for a wide range of products: from thin pavers (50-80mm) to standard hollow blocks (190mm) and interlock bricks. |
| Total Power | 40.5 kW | Intelligent Power Distribution:Maximizes output energy efficiency while maintaining high-torque performance, significantly lowering the electricity cost per brick. |
| Molding Cycle | 12-18 sec | Superior Productivity:15-20% faster cycle times than traditional mechanical transmission systems, making it the ideal choice for efficient medium-scale production. |
| Pallet Size | 880 x 680 mm | Optimized Cost-Efficiency:The pallet size is engineered to balance high output with lower auxiliary equipment costs (racks/pallets), offering the best ROI for this machine class. |
| Legend | Product size (mm) | Pcs./Pallet | Pcs./Hour | ||
 | 240*115*53 | 30 | 7700-9000 | ||
 | 200*100*60 | 21 | 3400-3800 | ||
 | 225*112.5*60 | 15 | 2400-2700 | ||
 | 390*140*190 | 6 | 1200-1400 | ||
| 400*200*200 | 6 | 1200-1400 | ||
Note: The molding cycle time and the hourly capacity will be changed according to the proportion and the quality of the raw material.
Production Line
Application
Building Wall Material Series
 |  |  |  |
| Flower Bed Brick | Split Brick | Split Brick | Split Brick |
 |  |  | |
| Wall Brick | Solid Brick | Wall Tiles |
Paving Stone Series
 |  |  |  |
Permeable Brick | Permeable Brick | Antique Brick | Antique Brick |
 |  |  |  |
Antique Brick | Antique Brick | Chain Pavement | Chain Pavement |
 |  |  |  |
Pavement Brick | Antique Brick | Antique Brick | Pavement Brick |
 |  |  |  |
Pavement Brick | Pavement Brick | Pavement Brick | Split Brick, Pavement Brick |
 |  |  |  |
Grass Brick | Grass Brick | Paving Stone | Paving Stone |
 |  |  |  |
Paving Stone | Paving Stone | Paving Stone | Paving Stone |
 |  |  |  |
Paving Stone | Paving Stone | Paving Stone | Paving Stone |
Road Wdge Stone Series
 |  |  |  |
Road Wdge Stone | Road Wdge Stone | Road Wdge Stone | Road Wdge Stone |
 |  |  | |
Road Wdge Stone | Road Wdge Stone | Road Wdge Stone |
Slope-protect Brick Series
 |  |  |  |
Slope-protect Brick | Slope-protect Brick | Slope-protect Brick | Slope-protect Brick |
 |  |  |  |
Slope-protect Brick | Slope-protect Brick | Slope-protect Brick | Slope-protect Brick |
 |  | ||
Slope-protect Brick | Slope-protect Brick |
