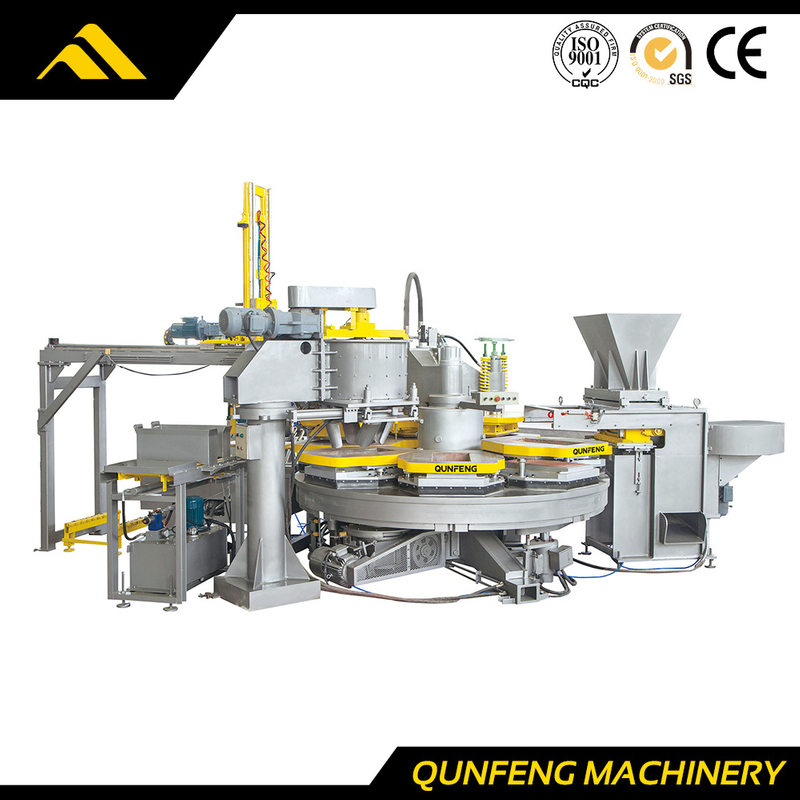

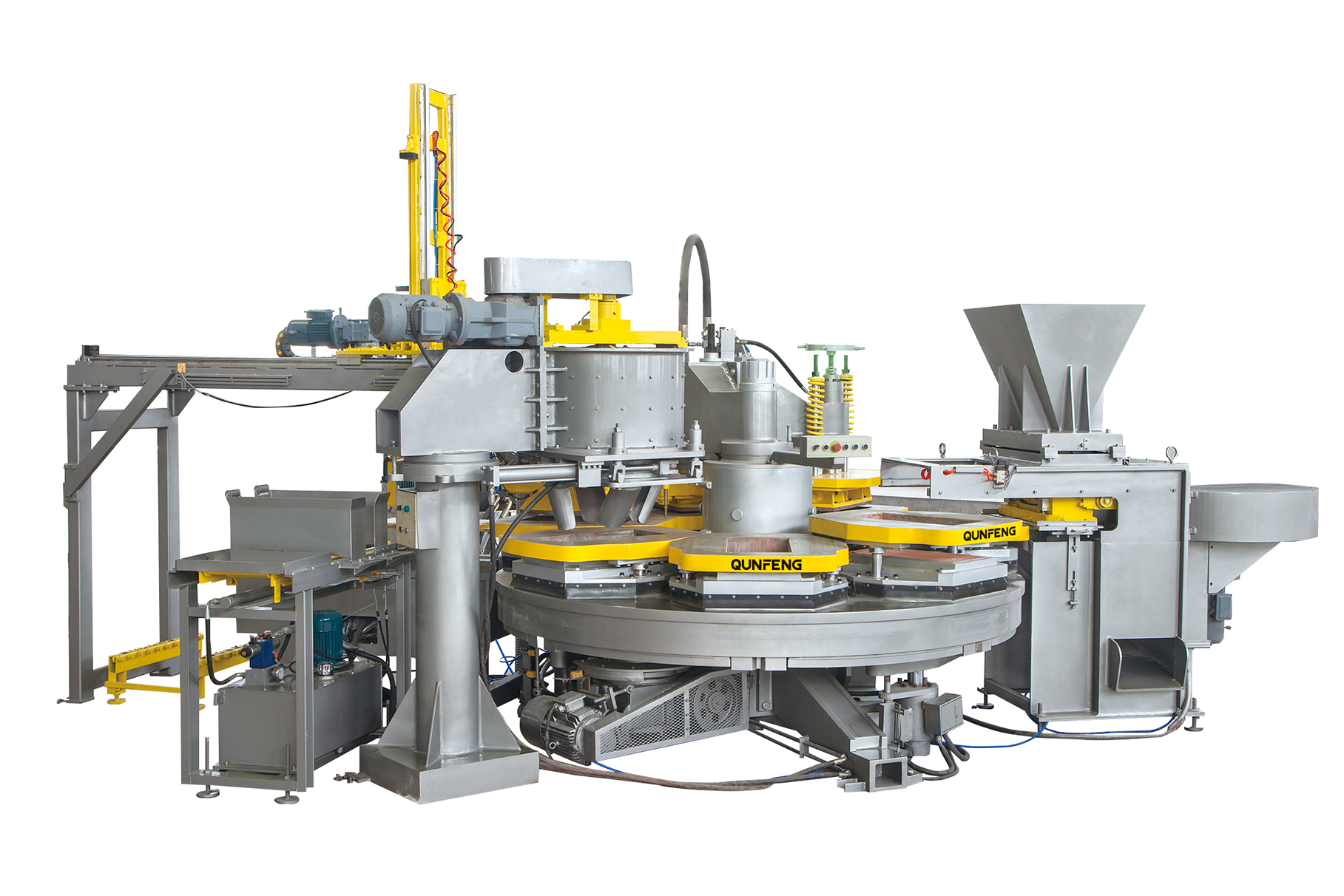

The QPR600-6 is a premium Hermetic Wet Press Machine optimized with Italian technology. It features a unique rotating-disk design that enables independent station movement, ensuring superior stability and high-efficiency production of high-value decorative tiles.
High-Value Production:Specially designed to produce premium terrazzo tiles and imitation stone pavers. The wet press technology allows for deep processing (sandblasting, grinding), significantly increasing the market value of the final product.
Advanced Rotary Technology:Utilizes an optimized turntable operation mode where each movement is independent. This structure is more stable than traditional linear machines and delivers higher production efficiency (up to 520㎡/8h).
Versatile & Multi-Color:Capable of producing single-layer or double-layer tiles with complex multi-color patterns. Ideal for manufacturing high-end floor tiles, sidewalk pavers, and plaza stones.
The preferred choice for manufacturers targeting the high-end decorative paving market.
| Quantity: | |
|---|---|
QPR600-6
QUNFENG
Product Description
Tech: Rotary Turntable Design
Upgraded based on advanced Italian technology. The machine utilizes a rotary turntable mode where stations move independently. This structural stability significantly outperforms traditional linear machines.
Tech: 600T High Pressure + Vacuum Filtration
Employs high-pressure hermetic filtration molding (up to 600 Tons). The combination of vibration and suction creates ultra-high-density tiles, perfect for producing premium terrazzo and imitation stone pavers.
Tech: High Density for Secondary Processing
Due to the superior density of the molded tiles, they can undergo diverse deep processing. This allows you to create high-value finishes such as sandblasting, washing, polishing, and brushed textures.
Tech: Rotating Multi-Layer Feeding
Equipped with a rotating multi-layer feeding system capable of producing complex patterns. It easily handles multi-color floor tiles, striped pavers, and intricate splicing designs.
Tech: Fast Cycle + Dual Layer
Combines table vibration with rapid high-pressure forming to shorten the molding cycle. Achieving a capacity of 350-520㎡ per 8 hours, it maximizes daily output for decorative tile lines.
Tech: Roof Tiles to Floor Pavers
One machine serves multiple purposes. It is capable of producing not only terrazzo floor tiles but also cement roof tiles, chromatic pavers, and imitation stone bricks by simply adjusting the mold and process.
Comparison of core parameters and competitive advantages based on official Qunfeng data.
| Technical Data | QPR600-6 Specification | Competitive Advantage (vs Industry Standard) |
|---|---|---|
| Production Capacity | 350-520 ㎡ / 8 hours | High-Volume Output:The rotary 6-station design allows for continuous operation, achieving a daily output of up to 520㎡, making it highly efficient for commercial terrazzo production. |
| Molding Pressure | 6000 kN (600 Tons) | Ultra-High Density:Delivers a massive 600 tons of pressing force. This high pressure ensures rapid water extraction and superior tile density, essential for high-quality polishing results. |
| Max Product Size | 600 × 600 mm | Large Format Versatility:Supports large 600x600mm tiles and offers multi-mold flexibility (e.g., 2 pcs of 500x250mm per mold), adapting easily to diverse market trends. |
| Thickness Range | 35-60 mm | Heavy-Duty Application:Produces tiles with substantial thickness (up to 60mm), making them suitable for high-traffic public areas, sidewalks, and plazas where durability is paramount. |
| Rated Power | 79.1 kW | Robust Power System:Equipped with a high-capacity 79.1 kW power system to drive the heavy-duty hydraulic station and turntable, ensuring consistent performance under 600T loads. |
| Dimension | 3050 × 3200 mm | Stable & Compact:The optimized Italian-style rotary structure provides exceptional mechanical stability within a 3x3.2m footprint, balancing space efficiency with heavy industrial capability. |
