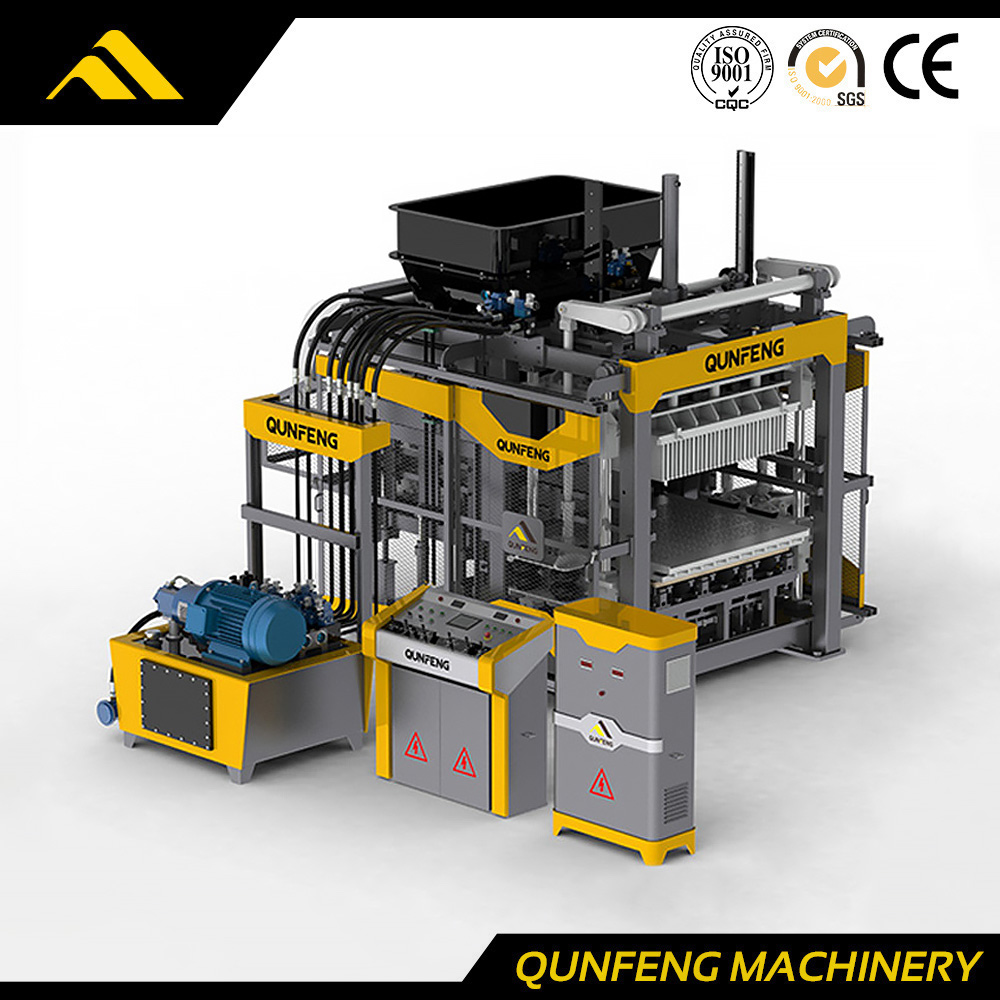

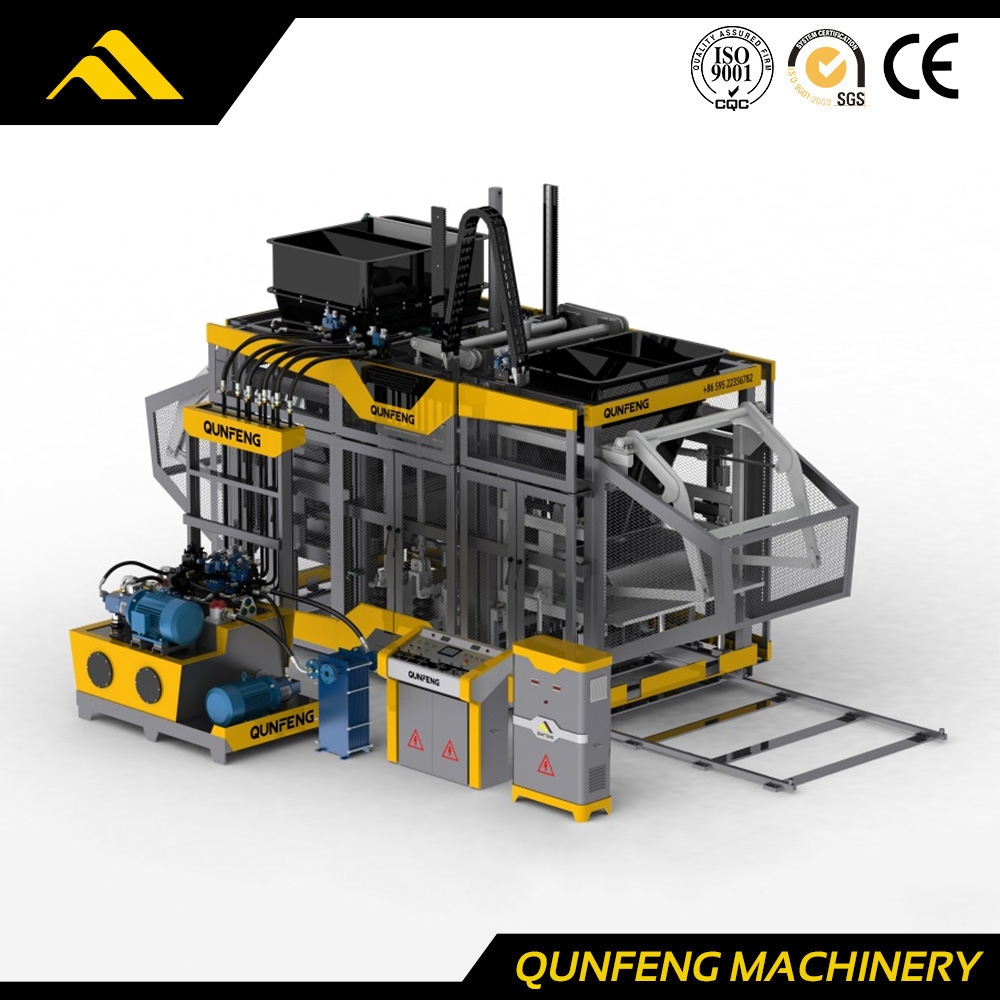

The QS1800 is a high-performance Servo Brick Machine designed for large-scale production. By utilizing advanced electro-hydraulic integration, it delivers superior productivity and profitability compared to traditional block machines.
Precision & Consistency: The specialized vibration system ensures uniform density for both solid and hollow bricks.
Energy Efficient: Built for low operational costs, consuming less power while maintaining high-speed output.
Versatile Application: Optimized for sustainable production using 100% construction waste and tailings. Easily accommodates diverse needs including grass-planting pavers, curb stones, and interlock blocks.
Ideal for large enterprises seeking durability and low maintenance.
| Quantity: | |
|---|---|
QS1800
QUNFENG
Product Description
Tech: 2-Axis Servo + High-Horsepower Double Pumps
Combines electro-hydraulic integration with high-speed servo vibration. This synergy delivers quick response times and flexible movement, resulting in a 20% increase in output compared to standard machines.While traditional hydraulic systems (referring to standard models) are reaching their limits, QS1800’s Gen-3 Servo System redefines the ceiling of productivity.
Tech: Siemens PLC + German Turck Sensors
Running on Siemens high-speed processing cores, enable micro-second hardware-level synchronization. The automated material-ratio program saves labor costs by 15% and eliminates human error. Includes remote cloud diagnosis to solve problems instantly from anywhere.90% of maintenance can be diagnosed remotely via our cloud system.
Tech: Imported Michelin Rubber Pads + Airbag Clamping
Utilizes imported Michelin raw rubber pads and suspension-type vibration to reduce noise pollution by 10%. The airbag clamping system speeds up mold changes while minimizing mold damage.
Tech: 360° Rotary Rake + Anti-Mix Color System
The 360° rotating rake with a scraping device ensures uniform density. The specialized Anti-mixing Pigment Feeding System guarantees distinct color separation, significantly improving the surface quality of premium pavers.
Tech: Double Pressure Head Cylinders
The double-cylinder design ensures perfectly vertical pressure distribution, effectively improving the structural strength and consistency of every block produced.
Tech: Auto-Diagnosis + Auxiliary Mold Change
The comprehensive fault alarm system shortens troubleshooting time by 30%. Combined with the auxiliary automatic mold changing system, the QS1800 maximizes production uptime.
Extreme Environment Testing: Tested for 2,500+ hours of continuous operation in 55°C desert environments with zero core component failure.
Efficient Servo System |
Stabile Hydraulic System |
Dumping Airbag |
The design for the press head with two oil cylinders |
Air-operated Clean Device |
Ping-pong Type for Feeding Material |
Arc-shape Feeding Arm |
Modularize Eccentric Vibration |
Automatic Control System |
Comparison of core parameters and competitive advantages against industry standards.
| Technical Data | QS1800 Specification | Competitive Advantage (vs Industry Standard) |
|---|---|---|
| Rating Pressure | 21 MPa | High-Pressure Molding: Ensures superior density and load-bearing strength, meeting strict municipal standards for heavy-duty pavers. |
| Vibration Frequency | 0 - 75 HZ | High-Speed Servo: Wider frequency range than standard 50HZ motors, achieving faster compaction and better homogeneity. |
| Vibration Mode | Table Vibration (Servo) | Stable Performance: 2-Axis Servo synchronization reduces mechanical fatigue and ensures consistent product height across the pallet. |
| Suitable Block Height | 45-500 mm | Versatility: Perfectly optimized for the most common range of products: pavers (60-80mm), hollow blocks (190mm), and interlock bricks. |
| Total Power | 137.5 kW | Intelligent Power Distribution: Maximizes output energy efficiency while maintaining high-torque performance, lowering cost per brick. |
| Molding Cycle | 14-22 sec | Superior Productivity: 15-20% faster than traditional hydraulic systems, ideal for large-scale production enterprises. |
| Intelligent System | Siemens PLC + Cloud | Low Failure Rate: Modular architecture featuring remote cloud-based diagnostics for 24/7 uptime and smart recipe management. |
| Damping System | Michelin Rubber Pads | Long Service Life: Advanced shock absorption significantly reduces wear on machine and moulds, extending equipment lifespan. |
| Legend | Product size (mm) | Pcs./Pallet | Pcs./Hour | ||
 | 240*115*53 | 85 | 20600-26000 | ||
 | 200*100*60 | 60 | 9700-10600 | ||
 | 225*112.5*60 | 45 | 7200-8000 | ||
 | 390*140*190 | 18 | 3600-4300 | ||
| 400*200*200 | 15 | 3000-3600 | ||
Note: The molding cycle time and the hourly capacity will be changed according to the proportion and the quality of the raw material.
Production Line
Simple Block Making Production Line(Single line)
Fully Automatic Block Making Plant with Stacker
Fully Automatic Block Making Production Line
Fully Automatic Block Production line with Curing Rack
Application
Building Wall Material Series
Flower Bed Brick |
Split Brick |
Split Brick |
Split Brick |
Split Brick |
Solid Brick |
Wall Tiles |
Wall Tiles |
Paving Stone Series
|
|
|
|
|  Antique Brick |
|
Chain Pavement |
|
|
|
|
|
|
|
Split Brick, Pavement Brick |
|
|
|  Paving Stone |
|
|
|
|
Road Wdge Stone Series
|
|
|
|
|
|
|
Slope-protect Brick Series
|
|
|
|
|
|
|
|
|
|
Customer Case
 Russia: Reliable operation in -30°C freezing winters. |  Saudi Arabia: Peak output in 50°C desert heat |
Egypt: Durable performance in dry, dusty desert environments. |
Vietnam: 24/7 non-stop production in high humidity. |
 India: Efficiently processing fly ash into quality bricks. |
China: Mega-plant setup for municipal paver supply. |
