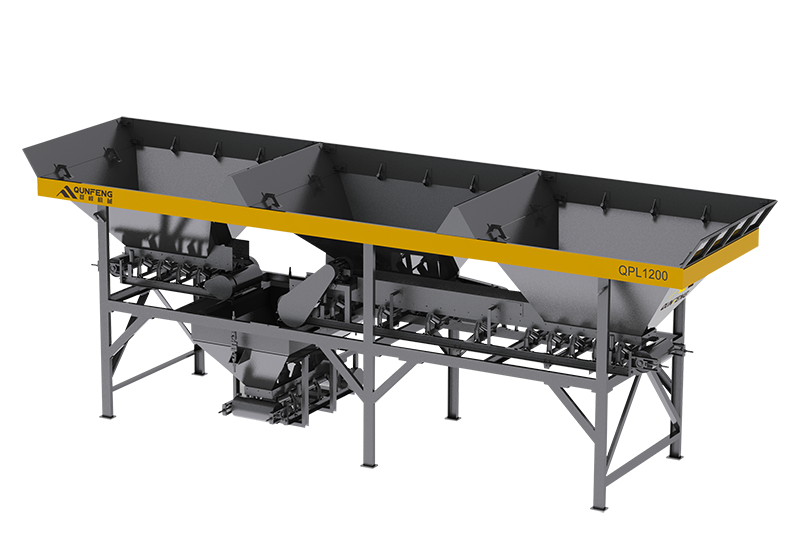

The QPLD1200 is a high-performance 3-bin batching system designed for medium-scale concrete plants. With a 1.2m³ weighing hopper and 72 m³/h productivity, it offers superior flexibility for complex mix designs involving three different aggregates, ensuring precise and efficient production.
Enhanced Productivity:Delivers a robust output of 72 m³/h, significantly boosting production speed compared to smaller models. Its 3×4m³ reserve hoppers ensure a continuous material supply for uninterrupted operation.
Flexible 3-Bin Configuration:Features 3 independent batching bins. This allows for the precise mixing of three distinct aggregate types (e.g., sand, stone, and chips), enabling the production of higher-quality, multi-component concrete recipes.
Precision & Automation:Equipped with advanced electronic cumulative measurement sensors to maintain a batching precision of ±2%. The integrated PLC control system with digital display ensures fully automated, one-touch management.
The versatile solution for upgrading your plant's capacity and concrete formula capabilities.
| Quantity: | |
|---|---|
QPLD1200
QUNFENG
Product Description
Tech: Electronic Cumulative Measurement
Adopts advanced electronic cumulative measurement technology. This ensures high measurement precision, guaranteeing exact material ratios for high-quality concrete.
Tech: PLC + Digital Display
Equipped with a PLC centralized control system featuring a clear digital display. It simplifies operation and allows for easy monitoring of the batching process.
Tech: Fully-Automatic Design
Both the batching machine and the mixer are designed as fully-automatic types. This integration streamlines the production line and minimizes manual intervention.
Tech: Fast Mixing Speed
Engineered for performance with high mixing speed and efficient handling, ensuring a continuous and steady supply of materials to the block machine.
Tech: Multi-Equipment Support
Highly compatible feeding system. It works seamlessly with loading machines, belt conveyors, grab buckets, and horizontal pushing systems.
Tech: High Reliability Build
Built to last with a focus on higher reliability. Its robust construction ensures consistent performance even in demanding industrial environments.
Comparison of core parameters and competitive advantages based on official Qunfeng data.
| Technical Data | QPLD1200 Specification | Competitive Advantage (vs Industry Standard) |
|---|---|---|
| Theoretical Productivity | 72 m³/h | Capacity Upgrade:Delivers a robust output of 72 cubic meters per hour, providing a 50% capacity increase over the smaller QPLD800 model to support medium-scale production lines. |
| Weighing Hopper Capacity | 1.2 m³ | Larger Batch Size:Equipped with a 1.2 m³ weighing hopper, allowing for larger individual batches that improve overall efficiency and reduce cycle frequency. |
| Reserve Hopper Configuration | 3 × 4 (m³) | Triple-Bin Storage:Features three independent reserve bins (3×4 configuration). This expanded storage ensures continuous supply for high-speed operations. |
| Batching Categories | 3 Types | Formula Flexibility:Supports 3 distinct aggregate types (e.g., Stone, Sand, Chips), enabling the production of more complex and higher-quality concrete recipes compared to 2-bin systems. |
| Max. Weighing Capacity | 1800 kg | Heavy-Duty Scaling:Engineered to handle a maximum batch weight of 1800 kg, providing reliable performance for heavy aggregate mixes. |
| Batching Precision | ± 2% | Laboratory Accuracy:Maintains a strict ±2% tolerance via electronic sensors, ensuring compliance with strict engineering standards and minimizing material waste. |
| Loading Height | 2500 mm | Low-Profile Design:Optimized with a loading height of just 2500 mm. This allows for easy feeding by standard wheel loaders without requiring steep, space-consuming ramps. |
| Total Power | 10.35 kW | Energy Efficient:Delivers increased performance with a power consumption of only 10.35 kW, balancing high throughput with operational cost savings. |
| Dimensions (L×W×H) | 8640 × 2370 × 2900 mm | Optimized Footprint:Despite its higher capacity and 3-bin layout, the machine maintains a reasonable footprint, fitting well into medium-sized production yards. |
