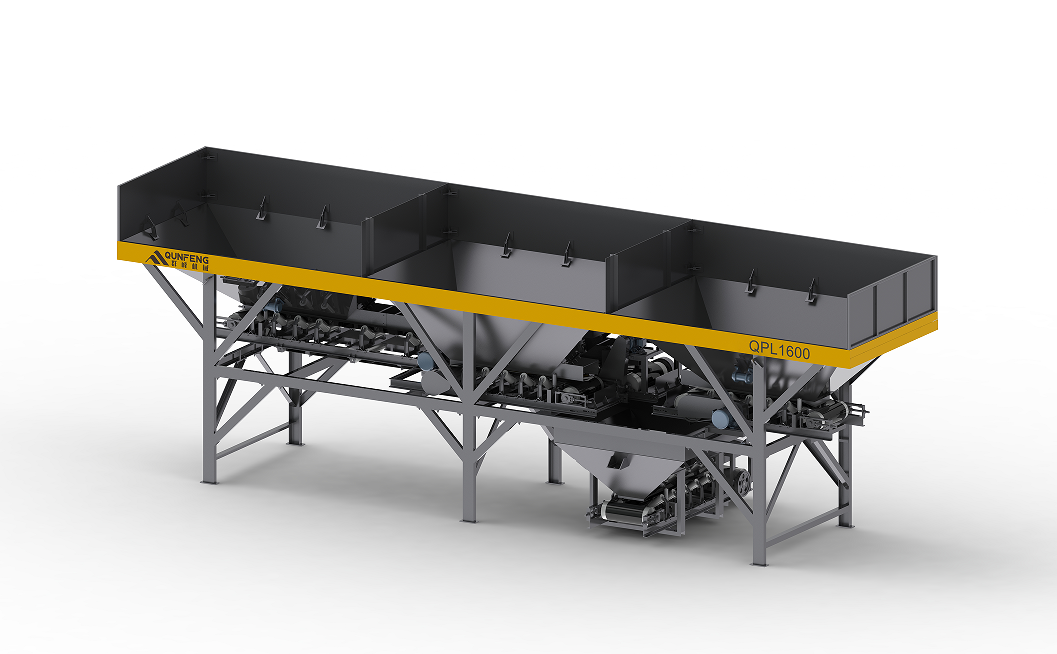

The QPLD Series (1600/3200/2400IV) is a fully automatic concrete batching system engineered for precision and reliability. It ensures the exact proportioning of aggregates, cement, and water, providing a consistent, high-quality mix for your block or concrete production line.
High-Precision Weighing:Adopts electronic cumulative measurement technology. This system guarantees a batching precision of ±2%, significantly reducing material waste and ensuring strict adherence to concrete formulas.
Smart Centralized Control:Powered by a PLC centralized control system with a clear digital display. It offers high automation, fast mixing speed, and reliable handling, minimizing the need for manual intervention.
Flexible Configuration:Available in multiple models (1600, 3200, 2400IV) with 3 to 4 batching categories. The feeding system is highly compatible, working seamlessly with loaders, belt conveyors, or grab buckets to fit your site layout.
The essential foundation for high-quality, cost-efficient concrete manufacturing.
| Quantity: | |
|---|---|
QPLD1600 3200 QPL2400IV
Qunfeng
Product Description
Tech: Electronic Cumulative Measurement
Adopts advanced electronic cumulative measurement technology. This ensures high measurement precision, guaranteeing the exact ratio of raw materials for consistent concrete quality.
Tech: PLC + Digital Display
Equipped with a PLC centralized control system and a clear digital display. It offers fully automatic operation, simplifying the workflow and minimizing manual errors.
Tech: Fast Mixing Speed
Engineered for performance with high mixing speed and reliable handling. The fully-automatic design ensures continuous, high-volume output to match the demands of the block machine.
Tech: Multi-Equipment Compatibility
The feeding system is highly compatible with various equipment, including loading machines, belt conveyors, grab buckets, and horizontal pushing systems, adapting to any site layout.
Tech: Fully-Automatic Design
Both the batching machine and mixer are designed as fully-automatic types with higher reliability, reducing downtime and ensuring long-term operational stability.
Tech: 1600 / 3200 / 2400IV Series
Available in multiple configurations (1600, 3200, 2400IV) to suit different capacity needs. The system allows for precise customization of aggregate batches to meet specific project requirements.
Comparison of core parameters and competitive advantages based on official Qunfeng data.
| Technical Data | QPL Series Specification | Competitive Advantage (vs Industry Standard) |
|---|---|---|
| Cubage of Weighing Hopper | 1.6 m³ / 2.4 m³ / 3.2 m³ | Large-Volume Processing:Equipped with large capacity hoppers (up to 3200L for QPLD3200), ensuring continuous material supply for high-speed block machines without bottlenecks. |
| Cubage of Reserve Hopper | 3×9 m³ / 3×15 m³ / 4×13 m³ | Massive Storage:Features substantial reserve capacity (up to 3×15m³ for QPLD3200), reducing the frequency of loader refilling and stabilizing the material flow. |
| Theoretical Productivity | 96 - 144 - 192 m³/h | High Efficiency Output:Delivers rapid batching speeds reaching 192 m³/h (QPLD3200), perfectly matching the cycle times of large-scale production lines. |
| Batching Precision | ± 2% | Electronic Accuracy:Uses electronic cumulative measurement to achieve ±2% precision, minimizing cement waste and guaranteeing strict adherence to formula strength requirements. |
| Batching Category | 3 Types / 4 Types | Flexible Formulations:Supports 3 to 4 aggregate bins (4 types for QPLD2400IV), allowing for complex mix designs essential for producing high-value paver products. |
| Loading Height | 2900 mm / 4483 mm / 3443 mm | Site Adaptability:Varying loading heights are designed to accommodate different site layouts and feeding equipment (loaders or belt conveyors). |
| Total Power | 11.75 kW - 15.05 kW | Energy Efficient:Provides powerful material handling with optimized energy consumption (e.g., 11.75kW for QPLD1600), lowering long-term operational costs. |
