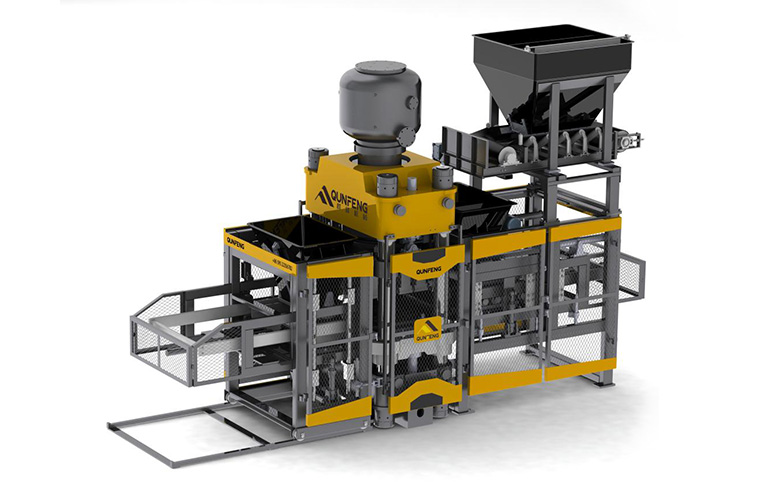

concrete block machine manufacturers(QP800)

QP800 adopt servo elctro-hydraulic control system to realize superior performance in efficiency, energy saving and silencing.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • QP800

  • QUNFENG

Product Description

Product Introduction

1.Adopt servo elctro-hydraulic control system to realize superior performance in efficiency, energy saving and silencing.

2.Adopt special feeding system combining concealed high frequency micro-vibration and the rotation blade to realize efficient feeding.

3.Can produce high strength paving bricks with surface layer, slope protection bricks, terrazzo bricks, clay bricks, etc.



Main technical features

Energy saving: can save 30% energy by adopting the servo system.

More accurate feeding: double-motor feeding system can realize balance feeding.

Low noise, faster and uniform material feeding with the micro-vibration system.



Technical data

Max. Pressing Force

8000KN

Max. Pressure of Main Cylinder (MPa)

30.5

Static Pressure Molding

Vibrating feeding pressing forming

Brick Height (mm)

45~120

Cycle Time (s)

15-22

Dimension (mm)

7150×2400×4500

Power (kW)

92.9

Weight (T)

35

Pallet Size (mm)

PVC Pallet 1100×950×(25-28)

Steel Pallet 1100×950×12

Output (mm)

Solid Brick (240×53×115) 39 pcs/cycle

Paving brick(200×100×60) 28 pcs./cycle

Paving brick(250×250×60) 9 pcs./cycle
