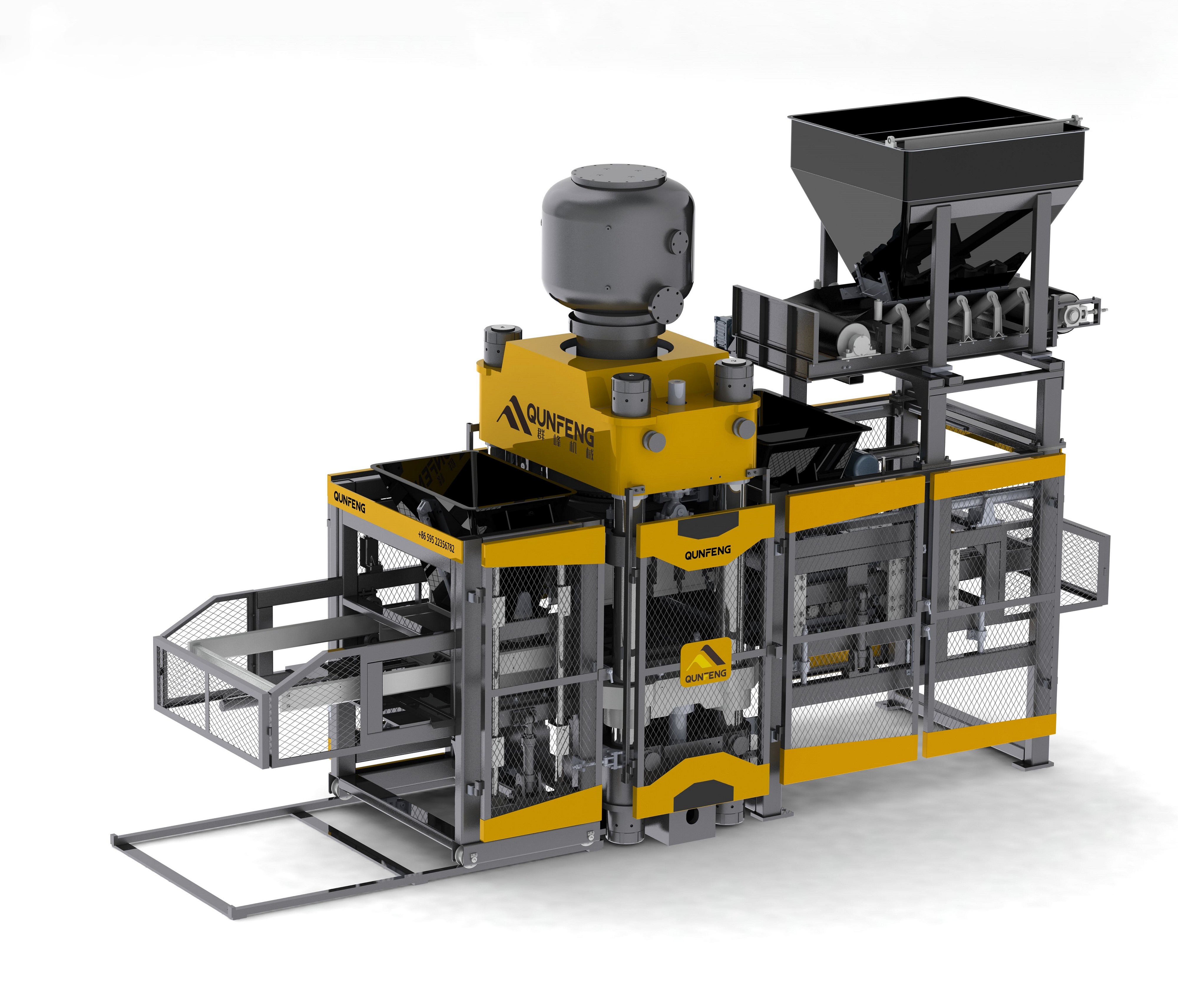

The QP800 is a high-efficiency Automatic Static Pressing Machine. Featuring a pallet-free design and 800-ton (8000KN) hydraulic force, it offers a cost-effective solution for producing high-density pavers and solid bricks with superior finish and strength.
Pallet-Free Production:Utilizes advanced Board-Free Technology that eliminates the need for production pallets. This significantly reduces initial investment costs and simplifies daily logistics.
800T Static Pressure:Delivers a powerful 8000KN static pressing force. This ensures high compactness and allows for the production of high-value products like terrazzo tiles and imitation stone bricks.
Servo Energy Saving:Equipped with an intelligent servo hydraulic system that adjusts output based on load. It improves feeding accuracy while reducing energy consumption by approximately 30% compared to traditional motors.
A reliable, energy-saving choice for high-quality concrete block manufacturing.
| Quantity: | |
|---|---|
QP800
Qunfeng
Product Description
Tech: Board-Free Static Pressing
Adopts advanced automatic static press forming without pallets. This design completely eliminates the recurring cost of pallet replacement and maintenance, significantly improving the return on investment.
Tech: 8000KN (800T) Hydraulic Force
Delivers a powerful 800 tons of main pressure. This high static force ensures superior compactness, making it ideal for producing high-strength pavement bricks and high-value dry PC terrazzo tiles.
Tech: Hydraulic-Electric Servo System
Equipped with a specialized hydraulic-electric servo system. Compared with ordinary motors, this technology reduces energy consumption by approximately 30%, lowering long-term operational costs.
Tech: Dual-Motor Control System
Features a dual-motor material distribution system that independently controls front and rear timing. This ensures balanced material distribution across the entire mold for consistent brick weight.
Tech: Micro-Vibration + Rotating Blade
Combines concealed high-frequency feeding with a vibrating table micro-vibration system. This results in faster, more uniform feeding while maintaining significantly lower noise levels than traditional machines.
Tech: From Clay Bricks to Terrazzo
The machine is highly versatile, capable of producing various concrete products including slope protection bricks, clay bricks, and high-quality dry PC terrazzo tiles to meet diverse market demands.
Comparison of core parameters and competitive advantages based on official Qunfeng data.
| Technical Data | QP800 Specification | Competitive Advantage (vs Industry Standard) |
|---|---|---|
| Main Pressure | 8000 KN (800 Tons) | High-Force Static Pressing:Delivers 800 tons of static pressure, ensuring exceptional density for pavement bricks and allowing for pallet-free production. |
| Max. Cylinder Pressure | 30.5 MPa | Robust Hydraulic System:Operates at a peak pressure of 30.5 MPa, providing stable and consistent force transmission essential for high-quality block forming. |
| Pallet Size | 1100 × 950 mm | Large Molding Area:The large 1100x950mm effective area maximizes per-batch output (e.g., 39 standard bricks per cycle), boosting overall daily capacity. |
| Suitable Block Height | 45-120 mm | Optimized for Pavers:Specifically designed for products between 45-120mm, making it the ideal specialist machine for pavers, solid bricks, and terrazzo tiles. |
| Moulding Cycle | 20-25 s | Efficient Static Cycle:Achieves a competitive 20-25s cycle time for a static press, balancing the need for high-pressure compaction with production speed. |
| Power | 138.6 kW | Servo-Enhanced Power:The 138.6 kW system is managed by hydraulic-electric servo technology, saving up to 30% energy while delivering high-torque performance. |
| Main Machine Dimension | 7150 × 2400 × 4500 mm | Heavy-Duty Construction:The substantial frame size indicates a robust build capable of withstanding the immense 8000KN internal forces during continuous operation. |
| Legend | Product size (mm) | Pcs./Pallet | ||
 | 240*115*53 | 39 | ||
 | 200*100*60 | 28 | ||
 | 250*250*60 | 9 | ||
Note: The moulding cycle time and the hourly capacity will be changed according to the proportion and the quality of the raw material.
