Block and Block Making Machine users often ask how to achieve consistent quality with less noise and downtime. At Qunfeng, we design and manufacture systems that solve these exact pain points for modern plants. This guide shares our top, field-tested tips from installation to daily operation. It is written for plant owners, engineers, and operators who want stable output, clean surfaces, and predictable costs - whether you run a single line or an automated concrete block production line.
For any Block and Block Making Machine, consistent inputs mean consistent results. Treat your mix like a controlled recipe: the same moisture window, the same aggregate gradation, and the same dosing sequence every time. Moisture swings, uneven aggregates, or delayed admixture addition will show up as cracks, color variation, or low density. Calibrate feeders before each shift and document your target settings so operators can repeat success, not chase it. Match the mold to the product and target height; the right mold setup reduces edge chipping, limits flashing, and cuts rework. Keep pallets clean and flat to support true geometry, and inspect wear items on the mold to preserve dimensional accuracy across long runs.
✅ Use a single moisture target for each mix and verify during every batch.
✅ Sieve aggregates regularly to avoid segregation and honeycombing.
✅ Align mold, tamper head, and pallet to stop edge flashing and off-square blocks.
Compaction defines strength and surface quality. Your goal is fast forming with low noise and low stress on components. Tune vibration amplitude and duration to the mix - not the other way around. For stiffer mixes, sharper bursts drive particles into place; wetter mixes need slightly longer impulses to prevent air pockets. Keep pressing and vibration synchronized so compaction is uniform from center to corners. Record cycle data (fill time, vibration time, press force, ejection time) and review trends daily. A slow drift in cycle time often signals pad or guide wear, misalignment, or feed inconsistency. Small corrections early prevent scrap later and extend mold life. Finally, standardize changeovers: when switching SKUs, run a short optimization batch and capture the final “golden” settings so the next run starts at proven parameters.
✅ Start with shorter, sharper vibration bursts for stiff mixes; lengthen slightly for wetter mixes.
✅ Keep press and vibration synchronized to avoid over-compaction at corners.
✅ Monitor cycle data; rising cycle times often signal wear on pads or guides.
These disciplined practices help any Block and Block Making Machine deliver dense, durable blocks with fewer rejects and less downtime - turning stable processes into predictable profit.

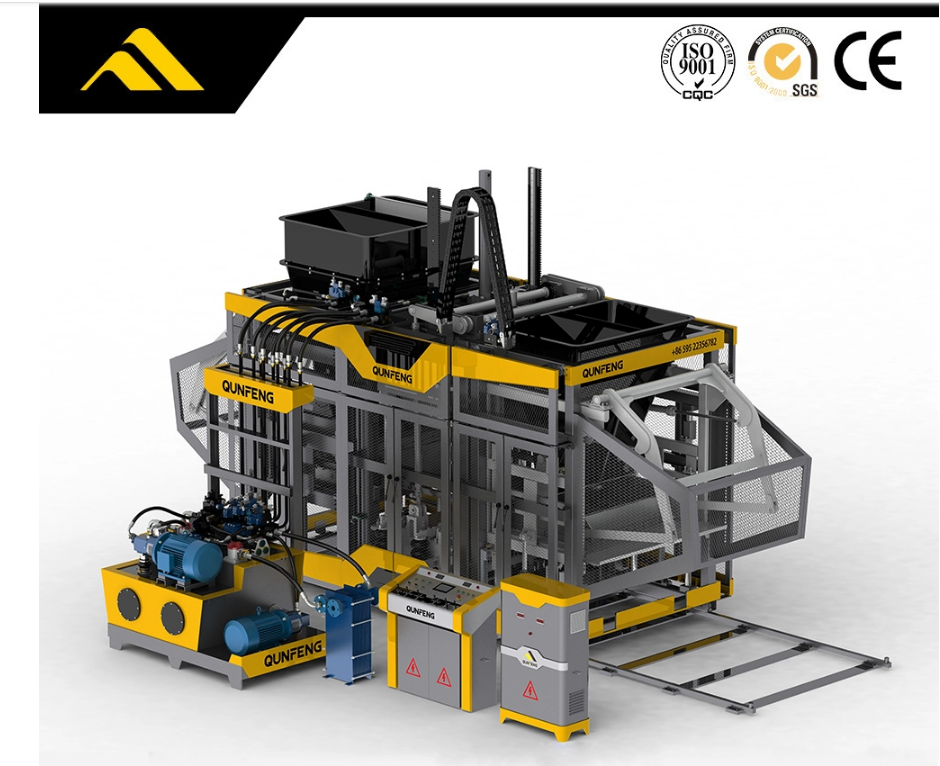

Our QM1200 is built for large-scale production with high automation and precise controls. It delivers consistent quality and high output while resisting demanding workloads. The machine's user-friendly layout streamlines operation and maintenance, cutting downtime and total cost.
Key technologies include Qunfeng's innovative U-shaped vibration system, a unique application in China that reduces noise and accelerates forming. Compared with traditional table vibration, it improves production efficiency and product compactness. The anti-mixture color feeding system enhances paver surfaces, while airbag clamping reduces noise and extends mold life. An imported shock pad adds extra shock absorption and noise reduction. Suitable block height: 50-220 mm.
• Suitable height: 50-220 mm
• U-shaped vibration: low noise, high efficiency, fast forming
• Anti-mixture color feeding: better paver surface quality
• Airbag clamping: longer mold service life
• Imported shock pad: shock absorption and noise reduction

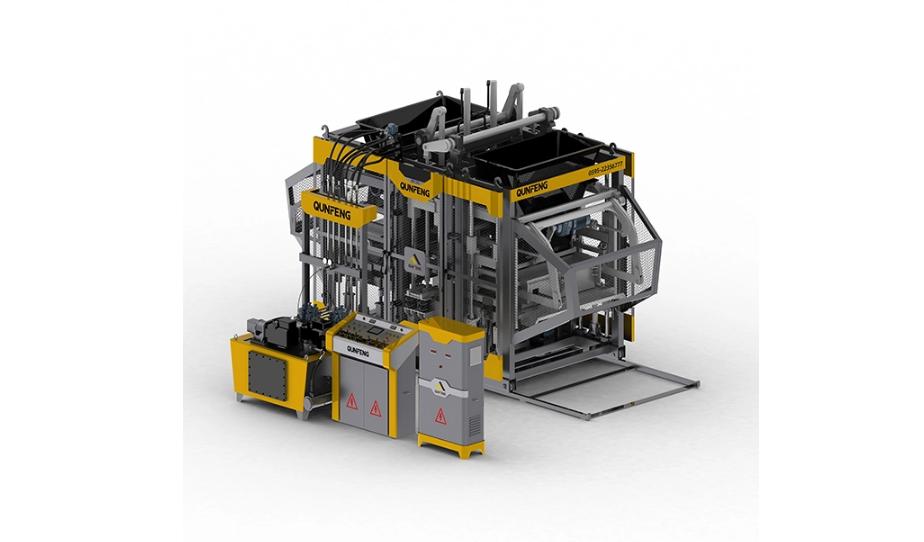

When your target is maximum capacity with high automation, choose the QS2000. It produces solid and hollow blocks with consistent molding and superior surface quality while minimizing energy use. The QS2000 adapts to permeable pavers, standard bricks, load-bearing and ordinary blocks, grass-planting bricks, interlocking bricks, curbstones, and hydraulic concrete blocks - ideal for large and ultra-large enterprises.
Its efficient four-axis servo system provides strong power and fast forming. The anti-mix color feeding system improves paver surfaces, airbag clamping extends mold life, and imported shock pads control vibration and noise. A large pallet design supports super-large capacity so more blocks are produced each cycle. Suitable block height: 45-500 mm.
• Suitable height: 45-500 mm
• Four-axis servo system: strong power, fast forming
• Anti-mix color feeding: improved paver surface quality
• Airbag clamping: longer mold service life
• Imported shock pad: shock absorption and noise reduction
• Large pallet design: super-large capacity, more blocks per cycle
The fastest path to ROI is uninterrupted production. Schedule short, frequent checks rather than long, infrequent shutdowns. Keep lubrication on schedule, clean feed systems daily, and replace wear parts before quality drifts. On both the QM1200 and QS2000, inspect vibration components, airbag clamps, and shock pads during each maintenance window; these parts protect the mold, reduce noise, and keep forming speeds high.
Daily essentials:
✅ Clear residual mix from the color feeding system to protect paver finish.
✅ Check airbag pressure and seals; a small leak shortens mold life.
✅ Verify pallet condition; a damaged surface transmits vibration poorly and lowers compactness.
• Operator Skills and Continuous Improvement (CTA)
Even the best equipment needs trained hands. Standardize recipes, teach operators how vibration affects density, and record cycle data for every product. Use small trials when switching SKUs so settings carry over cleanly. If you want help tuning your line, our application engineers can benchmark your current cycle, then recommend setting ranges for each mix and block height.
Call to Action: Ready to increase throughput and lower noise while improving surface quality? Contact Qunfeng for a plant assessment and a demo of the QM1200 or QS2000. We will map your product mix, choose the right configuration, and set up a training plan so your team reaches stable, repeatable results on day one - perfect for automated concrete block production and long-run efficiency.
By focusing on materials, vibration control, and preventive care - and by choosing the right Qunfeng model - your Block and Block Making Machine will deliver compact, durable blocks with clean surfaces and predictable costs. When you are prepared to scale, we are ready to support your line from installation to optimization.
